Compact tubular handling for workover sites

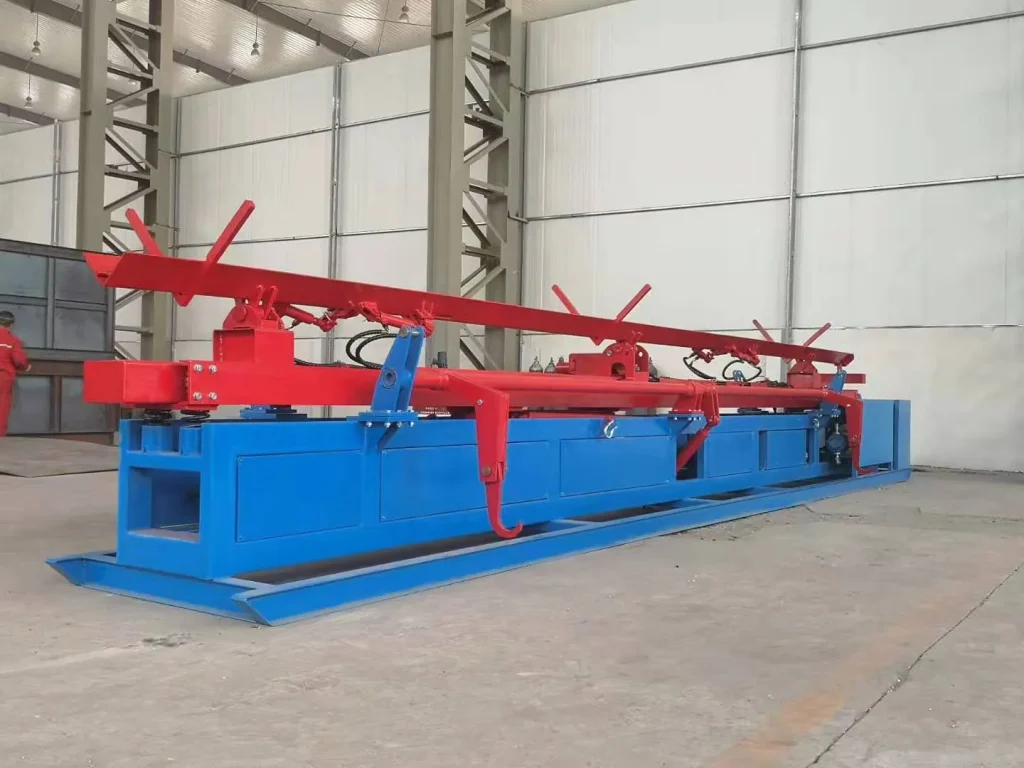

This automated catwalk is a core part of a light-workover automation package. It transfers tubing and drill pipe between the rack and work platform to reduce repetitive manual handling around the well site.
Configured for the workover unit
The layout, lifting geometry and controls can be coordinated with the workover platform, pipe rack and other handling equipment.
Key features
- Automated tubing and drill-pipe conveying
- Compact layout for light-workover sites
- Remote operation capability
- Reduced repetitive manual handling
- Integration with workover automation packages
Specifications
| Applicable platform height | Up to 3.5 m |
|---|---|
| Rated lifting load | 300 kg |
| Handling cycle | 40 s |
| Rated hydraulic pressure | 10 MPa |
| Total mass | 3,500 kg |
| Configuration | Adapted to site layout and workover unit |
Delivery and support
- Site-parameter review
- Equipment layout and configuration
- Factory testing
- Commissioning guidance
- Training and technical support
