An integrated handling sequence

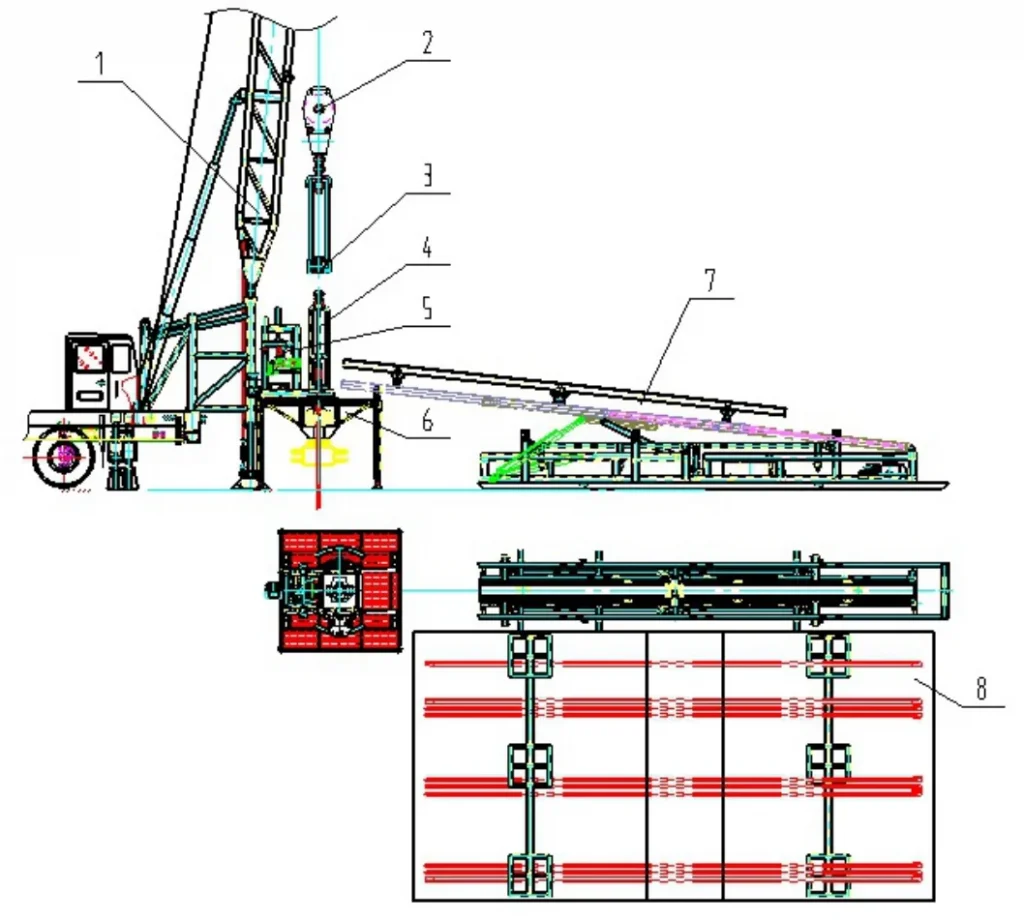

The semi-automatic system coordinates an automated catwalk, automatic hydraulic tong, manipulator, integrated work platform and powered pipe rack. It supports running, pulling, placing and fluid-recovery steps between the wellhead and pipe bridge.
Flexible package definition
Equipment composition can be adapted to the customer’s existing workover unit, available site space and required level of automation.
Key features
- Integrated automated catwalk and powered pipe rack
- Automatic hydraulic tong and manipulator
- Integrated work platform
- Supports running, pulling and placement of tubing
- Fluid-recovery provisions can be incorporated
Specifications
| Tubular size | 2 7/8 and 3 1/2 in |
|---|---|
| Tubular length | 5–10.5 m |
| Maximum tubular OD | 140 mm |
| Minimum rated tubular weight capability | 300 kg |
| Automation level | Semi-automatic, configured by application |
| Package composition | Defined against the existing workover unit |
Delivery and support
- Process study and automation-level definition
- System layout and interface matrix
- Integrated factory testing
- Commissioning and operator training
- Technical documentation and support
